Auto metal sheet feeder for power press coil feeder nc servo feeder machine

Auto metal sheet feeder for power press coil feeder nc servo feeder machine
Auto metal sheet feeder for power press coil feeder nc servo feeder machineAuto metal sheet feeder for power press coil feeder nc servo feeder machineAuto metal sheet feeder for power press coil feeder nc servo feeder machineAuto metal sheet feeder for power press coil feeder nc servo feeder machineAuto metal sheet feeder for power press coil feeder nc servo feeder machine
group name
Compact Servo Roller Feeder
Min Order
1 set
brand name
HongEr
model
GLK4
Nearest port for product export
Shenzhen Port, Jieyang Port, Shanghai Port, Tianjing Port
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update time
Thu, 23 May 2019 17:11:47 GMT

Paramtents

  • Decoiler Hydraulic Expansion, Motorized, Automatic

  • Straightener Gear drive, servo motor

  • Servo Feeder Yaskawa Driver and Yaskawa Motor

  • Oiling Machine To lubricate and cool down the coil sheet, prolongs the lifespan of dies

  • Shearer To cut off coil threads

  • Coil Weight Maximum 15 tons

  • Coil Width 1600 mm

  • Coil Thickness 0.6-6.0 mm thick

  • Straightener upper 4 / lower 3

  • Warranty 1 year

Packging & Delivery

  • Min Order1 set

Briefing

auto metal sheet coil feeder for power press

Detailed

Auto metal sheet feeder for power press coil feeder nc servo feeder machine
3in1 coil feeder Detail Features

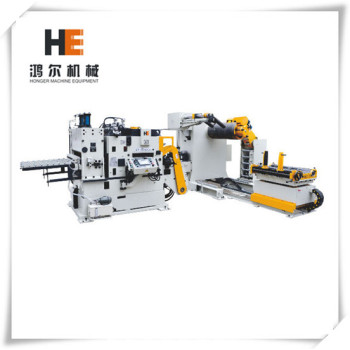

GLK4-800 3in1 decoil straightener feeder machine is customized with safety fence for automotive parts stamping.
Specially designed back pressure roller set, suitable for punching, unwinding and feeding of coils with material thickness of 0.6mm~6.0mm and width of 70mm~1600mm.

g
Decoiler

Decoiler mandrel loading width 100-800mm, loading weight 8000kgs, Expansion: Hydraulic wedge type, expansion range Φ475mm-Φ520mm

Coil Car

Bearing surface with roller shaft, support to input the material.


Press arm
Coil well-knit, no disperse
Straightner part
GCr15 steel straightener rolls
Specification
Model
GLK4-400
GLK4-600
GLK4-800
Coil Width(mm)
400
600
800
Coil Thickness(mm)
0.6-600
Max.Coil Weight(kg)
5000
5000
7000
Max.Coil O.D.(mm)
1400
Max.Coil I.D.(mm)
508
Max.Feeding Length(mm)
500
Max. Speed(m/min)
16-24
Straightener Roller(pcs)
Upper4/ Down3
Feeding Roller (group)
1
Servo Motor(kw)
5.5
7.5
7.5
Uncoiler expansion
Hydraulic
Uncoiler Motor(kw)
2.2
2.2
3.7
Power Voltage(V)
220V 60HZ/ 380V 60HZ
Air pressure(Mpa)
0.49
Application
layout-products

GLK4-600H high yield strength decoiler straightener and feeder machine is suitable for 600mm width metal coil sheet with high tensile. This 3 in 1 unit feeder machine with automatic system can be equipped with mechanical press machine for automobile stamping in Tier 1 manufacturers.

Our Customer
UnCoil feeder machine in UK
3 IN 1 Combo coil feeder machine for automotive stamping line equipped with mechanical press machine
