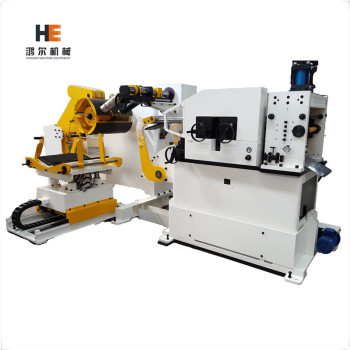

Steel Coil Feeder Straightener Machine With Coil Car
Steel Coil feeder straightener with Coil Car Detail Features
GLK4-400 handles material form 70mm to 400mm wide and up to 6.0mm thick
The advantages of coil feeder machine: High precision, High efficiency, durability, easy operation, suitable for 1300mm width, 6mm thickness material for automotive parts.

3in1 coil feeder machine is a peripheral feeding system that integrates a decoiler, straightener, feeder.
It is a coil feeding system that intergrate the function of 3 machine (decoiler, straightener, feeder) with digital technology, its working principle is composed of the follow parts.

Decoiler:
It adopt the principle of cantilever beam mechanism, the hydraulic expansion is made by the principle that expansion and contraction of the cylinder combined with linkage mechanism to make the diameter changes by decoiler blade.

Straightener:
The 3in1 coil feeder using a parallel roller correction method. It straightens the intermittent pressure into a roller-type continuous straightening. A plurality of mutually parallel correcting rolls are staggered from the inlet to the outlet, and repeated bending and bending are performed according to the law of decompression and bending to achieve the purpose of straightening, that is to say, the metal material is under a large elastic-plastic bending condition regardless of the original bending degree. How much difference is there, the difference in the degree of bending remaining after the rebound is significantly reduced, and even tends to be consistent.

Feeder:
The Coil feeding section is manufactured by setting the electronic ruler set to divide the circumference of the feeding roller and reflecting the angular velocity by the linear velocity. The Lihao three-in-one feeder is conventionally used in position semi-closed loop control. In this control mode, the feedback component on the servo motor is both a speed feedback component and a position feedback component. According to the set acceleration, running speed, deceleration and length. Positioning function modules in the servo controller automatically complete speed and position control
Specification
Model
GLK4-400
GLK4-600
GLK4-800
Coil Width(mm)
400
600
800
Coil Thickness(mm)
0.6-600
Max.Coil Weight(kg)
5000
5000
7000
Max.Coil O.D.(mm)
1400
Max.Coil I.D.(mm)
508
Max.Feeding Length(mm)
500
Max. Speed(m/min)
16-24
Straightener Roller(pcs)
Upper4/ Down3
Feeding Roller (group)
1
Servo Motor(kw)
5.5
7.5
7.5
Uncoiler expansion
Hydraulic
Uncoiler Motor(kw)
2.2
2.2
3.7
Power Voltage(V)
220V 60HZ/ 380V 60HZ
Air pressure(Mpa)
0.49
Application
Compact High strength coil feeder line
Be widely used in Automotive, Datacom & Telecom, and Medical markets

Whole production line:
3in1 coil feeder machine-press machine with progressive die
