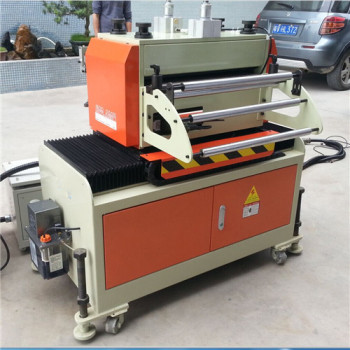

Excellent NC Servo Auto Steel Zigzag Feeder For Mould
- group name
- Small Feeder Machine
- Min Order
- 1 piece
- brand name
- HongEr
- model
- NCP-800
- Nearest port for product export
- Shenzhen Port, Jieyang Port, Shanghai Port, Tianjing Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 16 May 2019 14:29:58 GMT
Paramtents
Metal sheet width up to 800 mm
Metal sheet thickness 0.2-2.0 mm
Feed length up to 9999.99 mm
Feed accuracy ±0.1mm
Roller pressure Pneumatic
Servo motor Mitsubishi / Yaskawa, Japan
Servo driver Mitsubishi / Yaskawa, Japan
Max.feeding speed 24m/min
Max.Zigzag movement speed 18m/min
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
It uses high-speed linear bearings, rails are with special treatment, with low noise, high wear resistance, low friction load, and smooth movement speed
One way clutch
Made of tungsten carbide steel on the contacting surface to keep rigidity,precision and durabilit
The gear is hardened to HRC60° and groud to the best transmission accurac
Roller
High feed accuracy at exact positioning with hollow roller of less weight,and lower inerti/li>Hard chrome plated heat treated to HRC60° and ground for the best rigidity and durabilit
Disk brake
Apply the best brake lining to have accuracy,durability and rigidit
The anti-reversing device
The structure is the same as the one way clutcIt can precisely control the lower roller which will not reverse even for long time used as it is high in stability and recisio
The brakes will not out of control by the splashed waste oil when it is punching such cause the lower roller to reverse,and transfer distance unprecis
Speed can be reached to 30M/min if the anti-reversing device is fitteIn general it is 20M/miEfficiency has been increased about 50
Maximum feed speed 20m/min.
Use Japan Mitsubishi servo motor and driver, Schneider electric parts.
The feeding roller and leveling wheel by special heat treatment, high hardness (HRC 62), wear-resisting, long service life.
