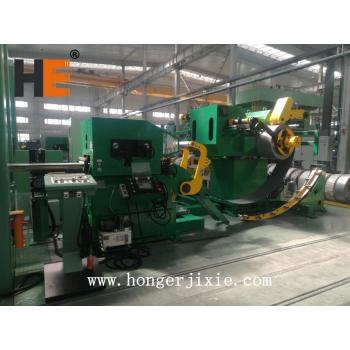

Servo feeder straightener cum decoiler machine for metal stamping

Servo feeder straightener cum decoiler machine for metal stamping
Servo feeder straightener cum decoiler machine for metal stampingServo feeder straightener cum decoiler machine for metal stampingServo feeder straightener cum decoiler machine for metal stampingServo feeder straightener cum decoiler machine for metal stampingServo feeder straightener cum decoiler machine for metal stamping
group name
Compact Servo Roller Feeder
Min Order
1 set
brand name
HongEr
model
GLK4
Nearest port for product export
Shenzhen Port, Jieyang Port, Shanghai Port, Tianjing Port
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update time
Fri, 10 May 2019 10:35:35 GMT

Paramtents

  • Decoiler Hydraulic Expansion, Motorized, Automatic

  • Straightener Gear drive, servo motor

  • Servo Feeder Yaskawa Driver and Yaskawa Motor

  • Oiling Machine To lubricate and cool down the coil sheet, prolongs the lifespan of dies

  • Shearer To cut off coil threads

  • Coil Weight Maximum 15 tons

  • Coil Width 1600 mm

  • Coil Thickness 0.6-6.0 mm thick

  • Straightener upper 4 / lower 3

  • Warranty 1 year

Packging & Delivery

  • Min Order1 set

Briefing

CNC Hydraulic Decoiler with press arm and coil car straightener and NC roll feeder (3in1)

Detailed

Servo feeder straightener cum decoiler machine for metal stamping
straightener feeder with uncoiler Detail Features
GLK4-400 handles material form 70mm to 400mm wide and up to 6.0mm thick
The 11 set rolls offer an extraordinary level of flatness to the materials.

Uncoiler:
Coil Car: 5Ton, Hydraulic cylinder lifting
Limiting Arm: Loating the coil.
Pressing Arm: Pneumatic pressure, PU Rubber
Arc Control: photoelectric loop control system
Supporting Arm
Hydraulic Expansion System

Straightener and feeder:
Oil input Supporting device
Straightener part: Ø68mm *7pcs(upper4/ Down3), Hardness HRC60±2.
Coil Input Supporting Device: Easily clamp the material head, lead it to straightener smoothly

Humanized Operation:
LCD Touch Screen: Coordinate with Safety Protection System, easy and safe to operate
Hand wheel with Dials: Precisely adjust straightening value via worm gear drive
Specification
Model
GLK4-400
GLK4-600
GLK4-800
Coil Width(mm)
400
600
800
Coil Thickness(mm)
0.6-600
Max.Coil Weight(kg)
5000
5000
7000
Max.Coil O.D.(mm)
1400
Max.Coil I.D.(mm)
508
Max.Feeding Length(mm)
500
Max. Speed(m/min)
16-24
Straightener Roller(pcs)
Upper4/ Down3
Feeding Roller (group)
1
Servo Motor(kw)
5.5
7.5
7.5
Uncoiler expansion
Hydraulic
Uncoiler Motor(kw)
2.2
2.2
3.7
Power Voltage(V)
220V 60HZ/ 380V 60HZ
Air pressure(Mpa)
0.49
Application
Compact High strength coil feeder line
Be widely used in Automotive, Datacom & Telecom, and Medical markets

Whole production line:
3in1 coil feeder machine-press machine with progressive die
Our Customer
UnCoil feeder machine in UK
3 IN 1 Combo coil feeder machine for automotive stamping line equipped with mechanical press machine
