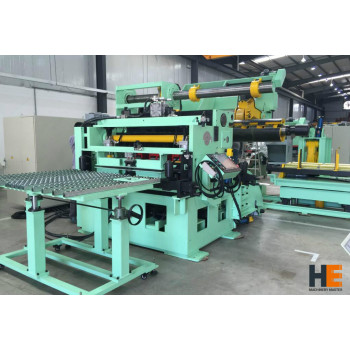

Compact Servo Feeder 3 in 1 Machine (6.0mm) High Strength
- group name
- Compact Servo Roller Feeder
- Min Order
- 1 set
- brand name
- HongEr
- model
- GLK4-H
- Nearest port for product export
- Shenzhen Port, Jieyang Port, Shanghai Port, Tianjing Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 22 Apr 2019 15:08:01 GMT
Paramtents
Product GLK-H High Strength Material Coil Handling Systems
Brand HongEr
Model GLK4-H
Applied industry Precision stamping parts, automobiles, aerospace,
Applicable materials Cold rolled plate, pickled plate, high strength plate and hot rolled plate
Coil car The support structure is type to assist the loading operation
Expansion style Hydraulic block driven
Limitting roller width adjust Electric adjustment
Coil input supporting arm Hydraulic drive, touch screen control
Straightener adjustment Electric adjustment
Packging & Delivery
-
Min Order1 set
Briefing
Detailed
Name | Decoiler Straightener and Servo Feeder Machine 3 in 1 | |||
Model | GLK4-600H | GLK4-800H | GLK4-1000H | GLK4-1300H |
Material strength | b≤392Mpa σs≤245MPa | |||
Material width | 70-600mm | 70-800mm | 70-1000mm | 70-1300mm |
Applicable material thickness | 0.6-6.0mm | |||
Feeding length | 0-9999.99mm | |||
Inside coil diameter | Φ508mm | |||
Max.coil outside diameter | Φ1600mm | |||
Max.coil weight | 5000KG | 5000KG | 7000KG | 10000KG |
Max. feeding speed | 16-24m/min | |||
Expansion style | Hydraulic expansion | |||
Pressing way | With pressing arm | |||
Straightener Rolls Auxiliary Rolls Pinch Rolls | 11 Pieces , top6/bottom 5, Φ68mm Φ68mm * 220mm *3 groups Φ88mm * 2pcs | |||
Power | AC380V±10%,50HZ ±2% , (can be changed according to your requirement) | |||
Pneumatic pressure | 0.5Mpa | |||
Running direction | From left to right | |||
Feature and advantage:
1. Save factory space. 3 machines together in one.
2. High feeding precision: +/-0.05mm
3. Suitable for material thickness: 0.5-9.5mm.
4. Suitable for all kinds of metal coil automatic straightening and feeding, easy to operate.
5. Suitable for metal parts, electron, electrical appliance, toy and auto parts continuous
pressing production, straightening and feeding.
6. Japan servo motor, PLC and other electrical parts, with little malfunction and long using
time. High quality, lowest maintenance.
7. Can feed different length at the time, easy operation, safe and high stability.
8. We can customize the machine.
9. Fast speed: 20m/min.
10. Coil car , pressing arm, conveyer belt , shearing machine , oiling machine etc. for
choosing.
1. Would you provide OEM/ODM service ?
Reply:We are providing OEM services for our competitors from European country and
Janpancompany.
Hong-Er Machine is a professional factory of high speed press machine,Automatic
feeder machine, uncoiler machine/decoiler machine, straightener machine, decoielr
straightener feeder, forming machine etc.
2.What certificates have you got?
Our company is verified by ISO9001, ISO14001.We got the certifications of CE for the
products including Feeder machine ,uncoiler machine , decoiler machine, high speed
press machine,forming machine etc.
3.What is the order process?
Inquiry for the machine-->offer with technical proposal and layout-->purchasing order
-->payment-->production-->delivery-->installation.
4.What is the delivery time for our machine?
Usually High speed press machine are 5-35 workdays.
Decoiler straightener feeder 3 in 1 machine are 15-65workdays.
Uncoiler straightener 2 in 1 machine are 1-25 workdays.
Feeder , uncoiler machine are 1-20 workdays.
Forming machine are 20-45 workdays.
Sometimes, our machines are in stock.
5.What is the payment terms for one order?
30% down payment by T/T. 70% balance byT/T or L/C at sight.
6.What is the warranty time for the machine?
We will give one year warranty time to the customer.
7.What is the quality control in the company?
We inspect the machine according to ISO 9001 standard and test the machine before
delivery and we make our machine with CNC equipment in our factory. Our machines
are high quality ones.
