Compact Servo Feeder 3 in 1 Machine (6.0mm) High Strength

Compact Servo Feeder 3 in 1 Machine (6.0mm) High Strength
Compact Servo Feeder 3 in 1 Machine (6.0mm) High StrengthCompact Servo Feeder 3 in 1 Machine (6.0mm) High StrengthCompact Servo Feeder 3 in 1 Machine (6.0mm) High StrengthCompact Servo Feeder 3 in 1 Machine (6.0mm) High StrengthCompact Servo Feeder 3 in 1 Machine (6.0mm) High Strength
group name
Compact Servo Roller Feeder
Min Order
1 set
brand name
HongEr
model
GLK4-H
Nearest port for product export
Shenzhen Port, Jieyang Port, Shanghai Port, Tianjing Port
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update time
Mon, 22 Apr 2019 15:07:20 GMT

Paramtents

  • Product GLK-H High Strength Material Coil Handling Systems

  • Brand HongEr

  • Model GLK4-H

  • Applied industry Precision stamping parts, automobiles, aerospace,

  • Applicable materials Cold rolled plate, pickled plate, high strength plate and hot rolled plate

  • Coil car The support structure is type to assist the loading operation

  • Expansion style Hydraulic block driven

  • Limitting roller width adjust Electric adjustment

  • Coil input supporting arm Hydraulic drive, touch screen control

  • Straightener adjustment Electric adjustment

Packging & Delivery

  • Min Order1 set

Briefing

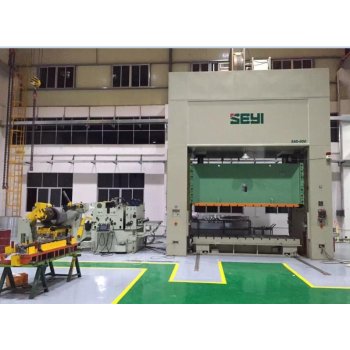

GLK4-H, decoiler straightener feeder 3 in 1 machine. Suits 6.0mm thick high tensile strip, Seyi, Aida, Chin Fong Press etc.

Detailed




Chinese stamping machines.jpg



GLK3  (4).jpg


Name

Decoiler Straightener and Servo Feeder Machine 3 in 1

Model

GLK4-600H

GLK4-800H

GLK4-1000H

GLK4-1300H

Material strength

b≤392Mpa   σs≤245MPa

Material  width

70-600mm

70-800mm

70-1000mm

70-1300mm

Applicable material thickness

0.6-6.0mm

Feeding length

0-9999.99mm

Inside coil diameter

Φ508mm

Max.coil outside diameter

Φ1600mm

Max.coil weight

5000KG

5000KG

7000KG

10000KG

Max. feeding speed

16-24m/min

Expansion style

Hydraulic expansion

Pressing way

With pressing arm

Straightener Rolls

Auxiliary Rolls

Pinch Rolls

11 Pieces , top6/bottom 5, Φ68mm

Φ68mm * 220mm *3 groups

Φ88mm * 2pcs

Power

AC380V±10%,50HZ ±2% , (can be changed according to your requirement)

Pneumatic pressure

0.5Mpa

Running direction

 From left to right

Feature and advantage:

1. Save factory space. 3 machines together in one.

2. High feeding precision: +/-0.05mm

3. Suitable for material thickness: 0.5-9.5mm.

4. Suitable for all kinds of metal coil automatic straightening and feeding, easy to operate.

5. Suitable for metal parts, electron, electrical appliance, toy and auto parts continuous

pressing production, straightening and feeding.

6. Japan servo motor, PLC and other electrical parts, with little malfunction and long using

time. High quality, lowest maintenance.

7. Can feed different length at the time, easy operation, safe and high stability.

8. We can customize the machine.

9. Fast speed: 20m/min.

10. Coil car , pressing arm, conveyer belt , shearing machine , oiling machine etc. for

choosing.




1. Would you provide OEM/ODM service ?

Reply:We are providing OEM services for our competitors from European country and

Janpancompany.

Hong-Er Machine is a professional factory of high speed press machine,Automatic

feeder machine, uncoiler machine/decoiler machine, straightener machine, decoielr

straightener feeder, forming machine etc.



2.What certificates have you got?

Our company is verified by ISO9001, ISO14001.We got the certifications of CE for the

products including Feeder machine ,uncoiler machine , decoiler machine, high speed

press machine,forming machine etc.



3.What is the order process?

Inquiry for the machine-->offer with technical proposal and layout-->purchasing order

-->payment-->production-->delivery-->installation.



4.What is the delivery time for our machine?

Usually High speed press machine are 5-35 workdays.

Decoiler straightener feeder 3 in 1 machine are 15-65workdays.

Uncoiler straightener 2 in 1 machine are 1-25 workdays.

Feeder , uncoiler machine are 1-20 workdays.

Forming machine are 20-45 workdays.

Sometimes, our machines are in stock.



5.What is the payment terms for one order?

30% down payment by T/T. 70% balance byT/T or L/C at sight.



6.What is the warranty time for the machine?

We will give one year warranty time to the customer.



7.What is the quality control in the company?

We inspect the machine according to ISO 9001 standard and test the machine before

delivery and we make our machine with CNC equipment in our factory. Our machines

are high quality ones.
