Coil Feeder Machine Automotive Coil Die Stamping Automatic Feeding

Coil Feeder Machine Automotive Coil Die Stamping Automatic Feeding
Coil Feeder Machine Automotive Coil Die Stamping Automatic FeedingCoil Feeder Machine Automotive Coil Die Stamping Automatic FeedingCoil Feeder Machine Automotive Coil Die Stamping Automatic FeedingCoil Feeder Machine Automotive Coil Die Stamping Automatic FeedingCoil Feeder Machine Automotive Coil Die Stamping Automatic Feeding
group name
Compact Servo Roller Feeder
Min Order
1 set
brand name
HongEr
model
GLK2
Nearest port for product export
Shenzhen Port, Jieyang Port, Shanghai Port, Tianjing Port
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update time
Thu, 28 Mar 2019 13:39:31 GMT

Paramtents

  • Decoiler Hydraulic Expansion, Motorized, Automatic

  • Straightener Gear drive, servo motor

  • Servo Feeder Yaskawa Driver and Yaskawa Motor

  • Oiling Machine To lubricate and cool down the coil sheet, prolongs the lifespan of dies

  • Shearer To cut off coil threads

  • Coil Weight Up to 15 tons weight

  • Coil Width 100-1600 mm wide

  • Coil Thickness 0.2-3.2 mm thick high tensile

  • Auxillary rollers Equipped

  • Rollers quality Material :GCr15 high quality bearing material. Thickening plating and Grinding processing. Hardness: HRC60-65

Packging & Delivery

  • Min Order1 set

Briefing

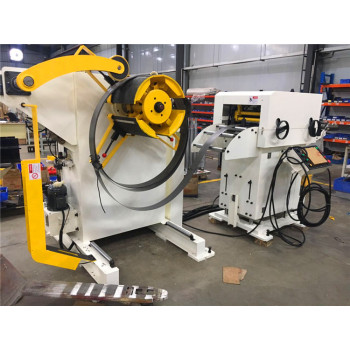

GLK2, decoiler straightener feeder 3 in 1 machine. Suits 3.2mm thick high tensile strip, Seyi, Aida, Chin Fong Press etc.

Detailed

Detailed Product Description
Coil Width(mm):50~600Coil Thickness(mm):0.2~3.2
Line Speed(m/min):16~24Coil Weight(Kg):3000/5000
Straightening Rollers Number(Pcs):Upper 6/lower 5Main Motor(Kw):AC 4.5
Warranty Period:12 Months

Automobile coil die stamping, roller feeder, stamping automatic feeding



The punch feeders used in continuous stamping production mainly include air, roller and NC feeder. Although the air feeder is low in price, it is gradually eliminated by the market due to its high failure rate, low precision and high maintenance cost.



Although the NC feeder has stable performance and convenient operation, it is relatively high in price because it needs to be fed by a servo motor, and it cannot be accepted by most customers.



At this time, the roller feeder has become the most used feeding equipment in the stamping industry due to its high precision, low failure, easy maintenance and no additional energy consumption.



In actual use, fix the roller feeder with the mounting plate on the side center of the die on the punch table, and fix the relaxation device on the slider so that the loosening screw just presses on the extension bracket.



The eccentric disk is mounted on the output shaft of the punching machine with the eccentric disk fixing seat, and then the connecting rod, the rocker arm and the body are installed. According to the width and thickness requirements of the material, the material thickness, feeding time, and distance of the roller feeder are Relax and adjust.



Then, after the inching test and the single-action test, the high-precision continuous automatic production can be performed.



Products:





Specification:


ModelGLK2-400GLK2-500GLK2-600GLK2-800
Stock Width(mm)50-40050-50050-60050-800
Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
Max.Coil Weight(kg)300030003000500050007000
Max.Coil O.D.(mm)120012001200
Coil I.D.(mm)88508508
Feed Length(mm)~500*~500*~500*~500*
Max. Line Speed(m/min)16-2416-2416-2416-24
Work Roll Number(pieces)upper 6
lower 5
upper 6
lower 5
upper 6
lower 5
upper 6
lower 5
Feed Roll Number(set)1111
Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
Mandrel Expansionhydraulichydraulichydraulichydraulic
Reel Motor(kw)1.51.51.52.22.23.7
Power(V)3 Phase 220V/380V/50HZ
Operating Air(Mpa)0.490.490.490.49


Straigtening performance:


tock Thicknees (mm)Stock Width (mm)
0.3400500600800
0.4
0.6
0.8
1.0
1.2
1.4
1.6470470
1.8400400
2.0360360
2.3300300300300
2.5230230230230
2.8150150150150
3.2110110110110


*1:(Pneumatic): Option in case of pneumatic mandrel expansion is provided


1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

2. After-Sales service:We have an efficient team to meet 24*7 all day service.

3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

4. Engineers can provide service machinery overseas.
