Compact Servo Roller Feeder
Min Order
1 set
brand name
HongEr
model
GLK2
Nearest port for product export
Shenzhen Port, Jieyang Port, Shanghai Port, Tianjing Port
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update time
Thu, 28 Mar 2019 13:44:24 GMT

Paramtents

  • Decoiler Hydraulic Expansion, Motorized, Automatic

  • Straightener Gear drive, servo motor

  • Servo Feeder Yaskawa Driver and Yaskawa Motor

  • Oiling Machine To lubricate and cool down the coil sheet, prolongs the lifespan of dies

  • Shearer To cut off coil threads

  • Coil Weight Up to 15 tons weight

  • Coil Width 100-1600 mm wide

  • Coil Thickness 0.2-3.2 mm thick high tensile

  • Auxillary rollers Equipped

  • Rollers quality Material :GCr15 high quality bearing material. Thickening plating and Grinding processing. Hardness: HRC60-65

Packging & Delivery

  • Min Order1 set

Briefing

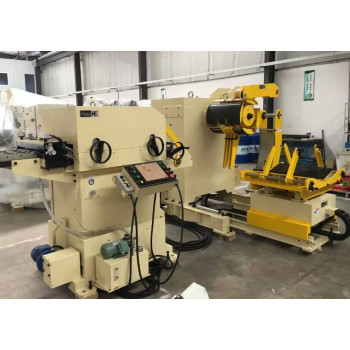

GLK2, decoiler straightener feeder 3 in 1 machine. Suits 9.5mm thick high tensile strip, Seyi, Aida, Chin Fong Press etc.

Detailed

Detailed Product Description
Coil Width(mm):50~600Coil Thickness(mm):0.2~3.2
Line Speed(m/min):16~24Coil Weight(Kg):3000/5000
Straightening Rollers  Number(Pcs):Upper 6/lower 5Main Motor(Kw):AC 4.5
Warranty Period:12 Months

Automated unwinding equipment, roll material stamping, heavy material rack



The material used in the stamping manufacturing process is usually a roll in the form of a roll. It needs to be discharged through a professional material rack, and then unrolled and exported to a leveling machine or a feeder at a predetermined position to complete the automatic unwinding process.



Heavy-duty material rack is the most commonly used unwinding equipment. In the process of unwinding, if the thickness and hardness of the coil itself is not large, the derivation process can easily form a smooth state due to no impedance.



If the coil itself has a large thickness and a high hardness of the metal coil, it is necessary to install a pneumatic pressing arm on the heavy material frame to prevent the unwinding of the coil, and smooth unwinding can also be achieved.



However, in the case of a metal wire having a large thickness and a high hardness, the material frame cannot completely press the material even if a press arm is added, and in the process of discharging, the wire material is largely bulked due to no tension, and at the same time The phenomenon of shrinkage deformation of the width of the coil material seriously affects the subsequent leveling, feeding process and the precision and stability of the entire stamping production.



In order to solve the problem of unwinding of coiled material, HongEr Machine has specially produced a heavy-duty material rack equipped with a guiding device, which adopts a roller-type guide tensioning sensing device when the guiding state of the wire take-up end is too slow.



It can automatically sense and stop the driving roller or slow down the rotation speed to return the wire feeding adjustment to the normal state in real time, so as to effectively prevent the wire material from tangling.



When the leading end of the wire coil is too tight and fast, the rotation speed of the driving roller can be automatically sensed to release the pressing state of the wire coil, thereby effectively preventing the wire coil from being shrunk due to too tight pulling. The problem of deformation occurs.



In order to control the guiding state of the coil material to a very small error value range, the processing precision can be greatly improved to meet the requirements of high-precision products, and the problem of large-diameter, high-hardness wire discharging and unwinding is fundamentally solved. At the same time, it effectively improves the efficiency and quality of the unwinding.



Products:





Specification:


ModelGLK2-400GLK2-500GLK2-600GLK2-800
Coil Width(mm)50-40050-50050-60050-800
Strip Thickness(mm)0.3~3.20.3-3.20.3-3.20.3-3.2
Max.Coil Weight(kg)300030003000500050007000
Max.Coil O.D.(mm)120012001200
Coil I.D.(mm)88508508
Feed Length(mm)~500*~500*~500*~500*
Max. Line Speed(m/min)16-2416-2416-2416-24
Work Roll Number(pieces)upper 6
lower 5
upper 6
lower 5
upper 6
lower 5
upper 6
lower 5
Feed Roll Number(set)1111
Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
Mandrel Expansionhydraulichydraulichydraulichydraulic
Reel Motor(kw)1.51.51.52.22.23.7
Power(V)3 Phase 220V/380V/50HZ
Operating Air(Mpa)0.490.490.490.49


Straigtening performance:


Coil Thicknees (mm)Coil Width (mm)
0.3400500600800
0.4
0.6
0.8
1.0
1.2
1.4
1.6470470
1.8400400
2.0360360
2.3300300300300
2.5230230230230
2.8150150150150
3.2110110110110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provided


1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

2. After-Sales service:We have an efficient team to meet 24*7 all day service.

3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

4. Engineers can provide service machinery overseas.
